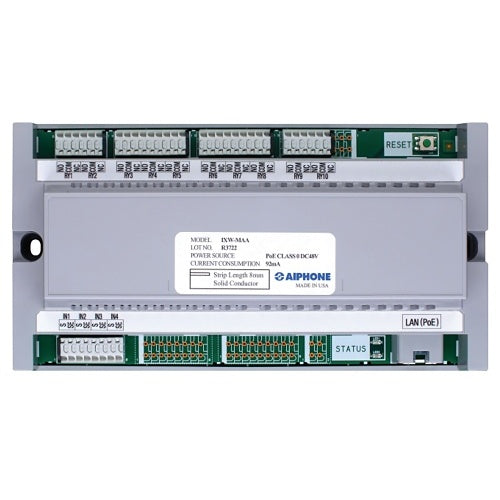

Aiphone IXW-MAA Multi-Purpose Adaptor for IX Series

The IXW-MAA is a multi-purpose adaptor for the IX Series with four contact inputs and ten relay outputs. The inputs can be used to send a command to a specific station to perform a task. The relay ouputs are assigned to a specific station and programmed to change state when relay output 1 or 2 on the associated station changes state. The IXW-MAA is surface mounted directly to the wall through the mounting points on either side, or it can be mounted on a standard DIN rail. Wire terminations connect directly to the inputs and outputs on the station. The IXW-MAA is programmed as an IXW-MA in IX Support Tool.

• 802.3af PoE
• Four contact inputs
• Ten Form C relay outputs
• 24V AC/DC 500mA relay contact rating
• Mountable to a 170mm DIN rail or directly to a wall
