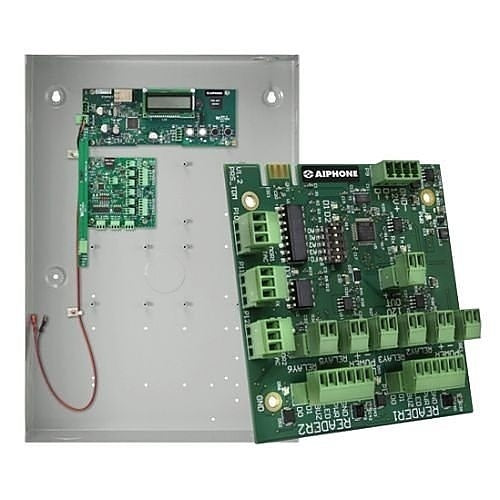

Aiphone ACS-2DR-C AC Series 2-Door Starter Kit, Includes the AC-C, Steel Lockable Enclosure, Master Door Control Board and 2-Door Relay Control Board

The ACS-2DR-C starter kit is a 2-8 door master door controller which includes the AC-C, a steel ventilated and lockable enclosure, a master door control board, and a two-door relay control board. Each door has two dry contacts and one wet contact for door release.This kit can be used on its own, or as part of a larger AC Series access control system, with additional AC-2DM modules and AC-2DR panels. The system is managed using the AC-NIO management software, with partitioning options available.

• Two Wiegand reader inputs (per AC-2DE)
• Integrated lock power for each door (12V DC, 5mA)
• Two solid state dry contact relays (per door)
• Three dry contact inputs per door
• Built in diagnostic LCD
• Custom scripting and actions available
• Can support up to 8 doors with additional AC-2DE
• Short and over-voltage protection
• Dedicated port for battery backup
• TAA and NDAA Compliant
