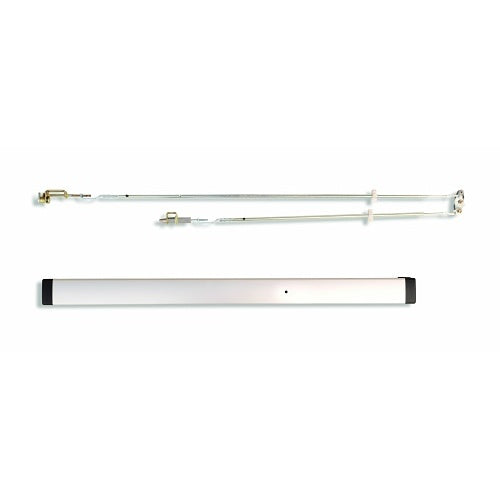

Adams Rite 8611-36 8611 8600 Series Life-Safety 36" Narrow Stile Concealed Vertical Rod Exit Device, Clear Anodized

The 8600 Series Narrow Stile Concealed Vertical Rod Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with concealed vertical rods for two-point locking. Designed for use in applications with single doors or pairs of doors.

• The 8600 Series Narrow Stile Concealed Vertical Rod Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with concealed vertical rods for two-point locking.
• Designed for use in applications with single doors or pairs of doors.
• Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4"[57.2 mm]. Device requires modification when used with cylinder in doors over 1-3/4" [44.5 mm].
• Door Height: Standard configuration suitable for doors up to 66" [1,676.4 mm] above the selected bar height.
• Push bar made of extruded aluminum, cladded or anodized in a variety of finishes.
• Push bar length: 48"
• Push bar made of extruded aluminum
• Standard configuration suitable for doors up to 66"
• Standard width bars can be field cut to the next smallest opening width
