Adams Rite 4036-01-01-628 4036 Mortise Cylinder, Keyed Different for MS Lock, 4900 Deadlatchs, and 2190, Clear Anodized

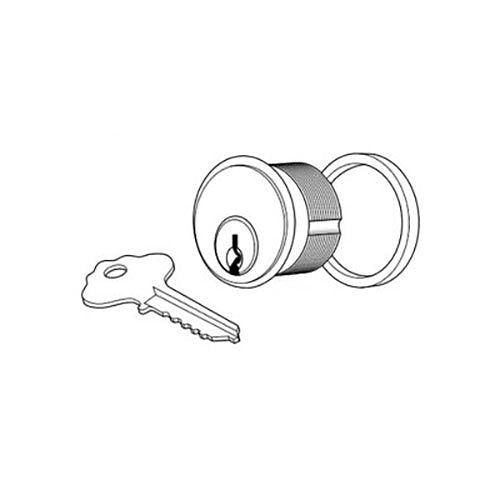

4036 Mortise Cylinder & 4066 ThumbturnThe 4036 Mortise Cylinder provides five-pin security with most Adams Rite deadlocks or deadlatches. The 4066 Thumbturn operates deadlocks or deadlatches without a key. Function: 4036: A standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter cylinder with five-pin tumbler security. Designed to operate any Adams Rite deadlock or deadlatch requiring a mortise cylinder. Close tolerance manufacturing achieve set screw grooves and cam geometry that are true on their respective centerlines. This ensures proper mating and operation with the locking or latching mechanism. Select cam to suit particular Adams Rite deadlock or deadlatch.

• 628 Clear Anodized finish
• Keying: All cylinders furnished with two keys per cylinder. Available in keyed different (KD), or keyed alike pairs (KA2). Keyed alike 50 are available by special order in quantity of 50 cylinders only. Please contact factory for ordering information.
• Standard Package: Individually packed with trim ring. 4036 furnished with keys.
• 2 keys and 1/4" ring available
• All cylinders are well furnished with two keys per cylinder
